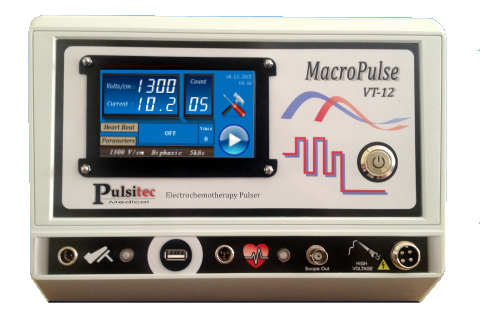

MacroPulse VT-12
Intelligent Electrochemotherapy Pulser
MacroPulse VT-12
Intelligent Electrochemotherapy Pulser
Affordable and unbeatable price Easy to use touchpanel interface Simple parameter / Protocol selection USB data transfer including patient data Heart beat syncronization input ready One channel ECG functionality Automatic high current reduction. Active fuse protection >12 A Automatic electrode type recognition Automatic voltage selection as per plugged electrode preventing inadvertant high voltage selection. Automatic voltage adjustment in case of an electrode change Foot pedal control to initiate each session. Monophasic / Biphasic output Oscilloscope output to track applied current and pulse timing Complete hardware check (Diagnostics) at each Power-On Date / time stamping Precious and Stable voltage adjustment Protocol Frequency selection as 5Hz - 500Hz - 5kHz On Screen pulse train quality indication and reporting after each electric application Low Power Consumption. P< 50W
Technical Data
Power | 220-240 V 50Hz - P < 50W |
---|---|
Output Voltage | 1300 V Max , +/- %1/td> |
Output Current | 12 A Max |
Pulse Width | 100us Monophasic, 50us+50us Biphasic |
Pulse Width Stability | +/- %2 |
Frequency of Output | 5Hz - 500Hz - 5kHz preprogrammed |
Weight | 7.2 kg |
Dimensions (WxHxD) | 26cm x 18cm x 35cm |
